DJL Malicious URL Detector Model Demo

Introduction

This repository contains a Demo application built using Deep Java Library(DJL). The application detects malicious urls based on a trained Character Level CNN model.

It uses a third-party dataset that is a amalgamation of the following malicious URL databases.

Benign

  1. Custom automated webscraping of Alexa Top 1M with recursive depth of scraping of level 1

Malicious

  1. Various blacklists
  2. openphish
  3. phishtank
  4. Public GitHub faizann24
  5. Some custom entries

The dataset can be found in the Malicious-URL-Detection-Deep-Learning repository.

Model architecture

The model has the following architecture.

  (0): Conv1D(None -> 256, kernel_size=(7,), stride=(1,))
  (1): MaxPool1D(size=(3,), stride=(3,), padding=(0,), ceil_mode=False)
  (2): Conv1D(None -> 256, kernel_size=(7,), stride=(1,))
  (3): MaxPool1D(size=(3,), stride=(3,), padding=(0,), ceil_mode=False)
  (4): Conv1D(None -> 256, kernel_size=(3,), stride=(1,))
  (5): Conv1D(None -> 256, kernel_size=(3,), stride=(1,))
  (6): Conv1D(None -> 256, kernel_size=(3,), stride=(1,))
  (7): Conv1D(None -> 256, kernel_size=(3,), stride=(1,))
  (8): MaxPool1D(size=(3,), stride=(3,), padding=(0,), ceil_mode=False)
  (9): Flatten
  (10): Dense(None -> 1024, Activation(relu))
  (11): Dropout(p = 0.5)
  (12): Dense(None -> 1024, Activation(relu))
  (13): Dropout(p = 0.5)
  (14): Dense(None -> 2, linear)

There are 2 output classification labels, benign or malicious.

The general model structure is based on the Character level CNNs paper's model description.

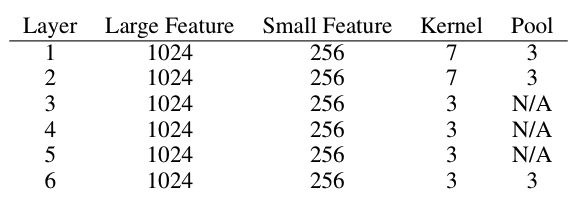

Model Architecture

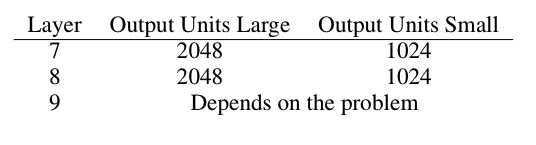

Model Architecture 2

Running the Proxy Server to detect malicious URLs

This demo contains a simple proxy server that can work with browsers to detect malicious URLs. This demo acts as a filter for malicious URLs. It works with both HTTP and HTTPs requests.

Run the proxy server from your terminal.

./gradlew run

This command starts the server, listening at port 8080.

> Task :run
[main] INFO com.example.FilterProxy - Waiting for request(s) on port 8080

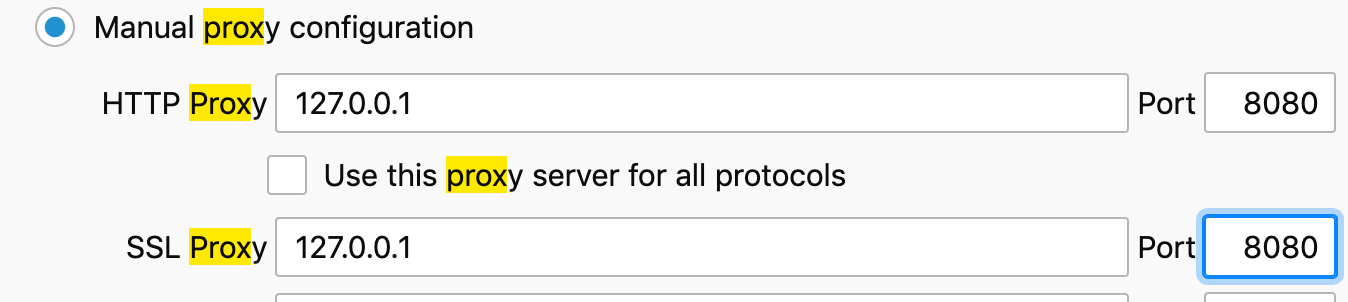

In your browser settings (firefox, for example), set the proxy settings to 127.0.0.1:8080.

Proxy Settings Firefox

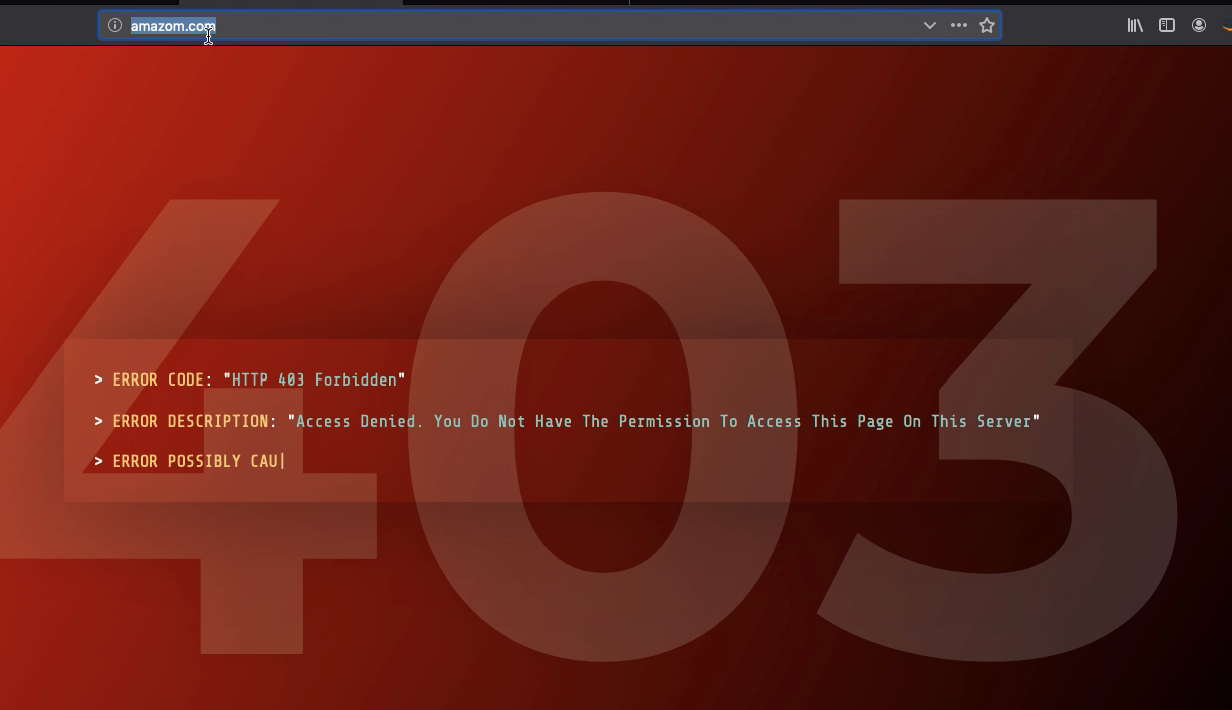

Now you can try to navigate to a mispelled amazon.com URL in the browser navigator and see the proxy at work.

Oops Malicious URL

The proxy server prints the following on the terminal screen.

> Task :run
[main] INFO com.example.FilterProxy - Waiting for client on port 8080..
[Thread-1] INFO com.example.RequestHandler - Malicious URL detected and blocked http://amazom.com/

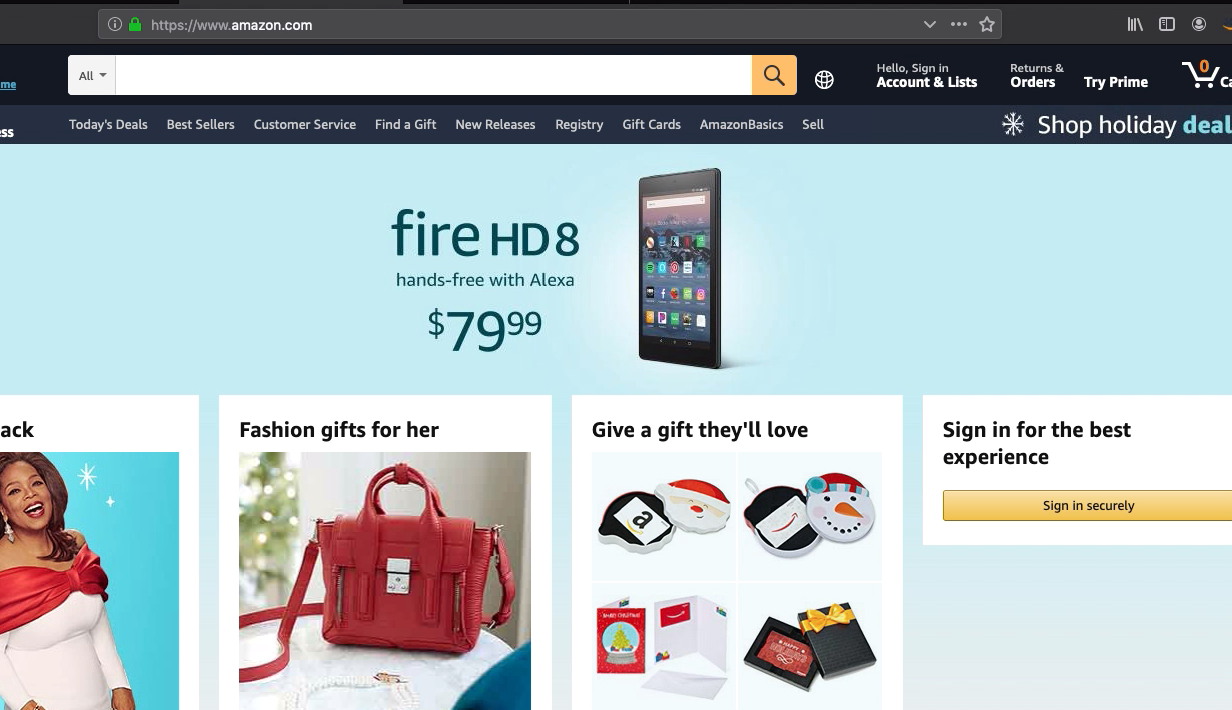

Typing the correct URL should show the correct website. Benign Website

Train the model in the command line

To train the model, a GPU instance is recommended. Training with a CPU is very slow compared to training with a GPU.

Train the model.

./gradlew train

> Task :train
[main] INFO com.example.ModelTrainer - Loading Dataset
[main] INFO ai.djl.training.listener.LoggingTrainingListener - Running Malicious URL training on: cpu().
[main] INFO ai.djl.training.listener.LoggingTrainingListener - Load MXNet Engine Version 1.9.0 in 0.153 ms.
[main] INFO com.example.ModelTrainer - Begin Training
Training:    100% |████████████████████████████████████████| accuracy: 0.71 loss: 0.54 speed: 323.74 urls/sec
Validating:  100% |████████████████████████████████████████|
[main] INFO com.example.ModelTrainer - Epoch 0 finished.
[main] INFO com.example.ModelTrainer - train accuracy: 0.7131701, train loss: 0.5386256
[main] INFO com.example.ModelTrainer - validate accuracy: 0.89068836, validate loss: 0.30017522
Training:    100% |████████████████████████████████████████| accuracy: 0.92 loss: 0.21 speed: 336.71 urls/sec
Validating:  100% |████████████████████████████████████████|
[main] INFO com.example.ModelTrainer - Epoch 1 finished.
[main] INFO com.example.ModelTrainer - train accuracy: 0.91614103, train loss: 0.21319388
[main] INFO com.example.ModelTrainer - validate accuracy: 0.81641084, validate loss: 0.43587697
Training:    100% |████████████████████████████████████████| accuracy: 0.95 loss: 0.14 speed: 340.42 urls/sec
Validating:  100% |████████████████████████████████████████|
[main] INFO com.example.ModelTrainer - Epoch 2 finished.
[main] INFO com.example.ModelTrainer - train accuracy: 0.9457474, train loss: 0.14361516
[main] INFO com.example.ModelTrainer - validate accuracy: 0.89394796, validate loss: 0.26676258
Training:    100% |████████████████████████████████████████| accuracy: 0.96 loss: 0.11 speed: 339.22 urls/sec
Validating:  100% |████████████████████████████████████████|
[main] INFO com.example.ModelTrainer - Epoch 3 finished.
[main] INFO com.example.ModelTrainer - train accuracy: 0.9595303, train loss: 0.10922413
[main] INFO com.example.ModelTrainer - validate accuracy: 0.9005698, validate loss: 0.26299196
Training:    100% |████████████████████████████████████████| accuracy: 0.97 loss: 0.09 speed: 338.12 urls/sec
Validating:  100% |████████████████████████████████████████|
[main] INFO com.example.ModelTrainer - Epoch 4 finished.
[main] INFO com.example.ModelTrainer - train accuracy: 0.9665886, train loss: 0.08993893
[main] INFO com.example.ModelTrainer - validate accuracy: 0.85562855, validate loss: 0.38608122
Training:    100% |████████████████████████████████████████| accuracy: 0.97 loss: 0.07 speed: 292.06 urls/sec
Validating:  100% |████████████████████████████████████████|
[main] INFO com.example.ModelTrainer - Epoch 5 finished.
[main] INFO com.example.ModelTrainer - train accuracy: 0.97365975, train loss: 0.07207036
[main] INFO com.example.ModelTrainer - validate accuracy: 0.92241156, validate loss: 0.22621335
Training:    100% |████████████████████████████████████████| accuracy: 0.98 loss: 0.06 speed: 319.64 urls/sec
Validating:  100% |████████████████████████████████████████|
[main] INFO com.example.ModelTrainer - Epoch 6 finished.
[main] INFO com.example.ModelTrainer - train accuracy: 0.9785428, train loss: 0.05851153
[main] INFO com.example.ModelTrainer - validate accuracy: 0.9198193, validate loss: 0.2653344

To run inference again, copy the .params file to the model folder.

More Reading

This repository contains documentation on training the model using DJL, writing Datasets, and using Translators.

  1. Creating a CSV Reading Dataset
  2. Defining the Character-level CNN Imperative Model
  3. Training the Character-level CNN Model on a CSV Dataset
  4. Writing the CSV Translator

License

This project is licensed under the Apache-2.0 License.
